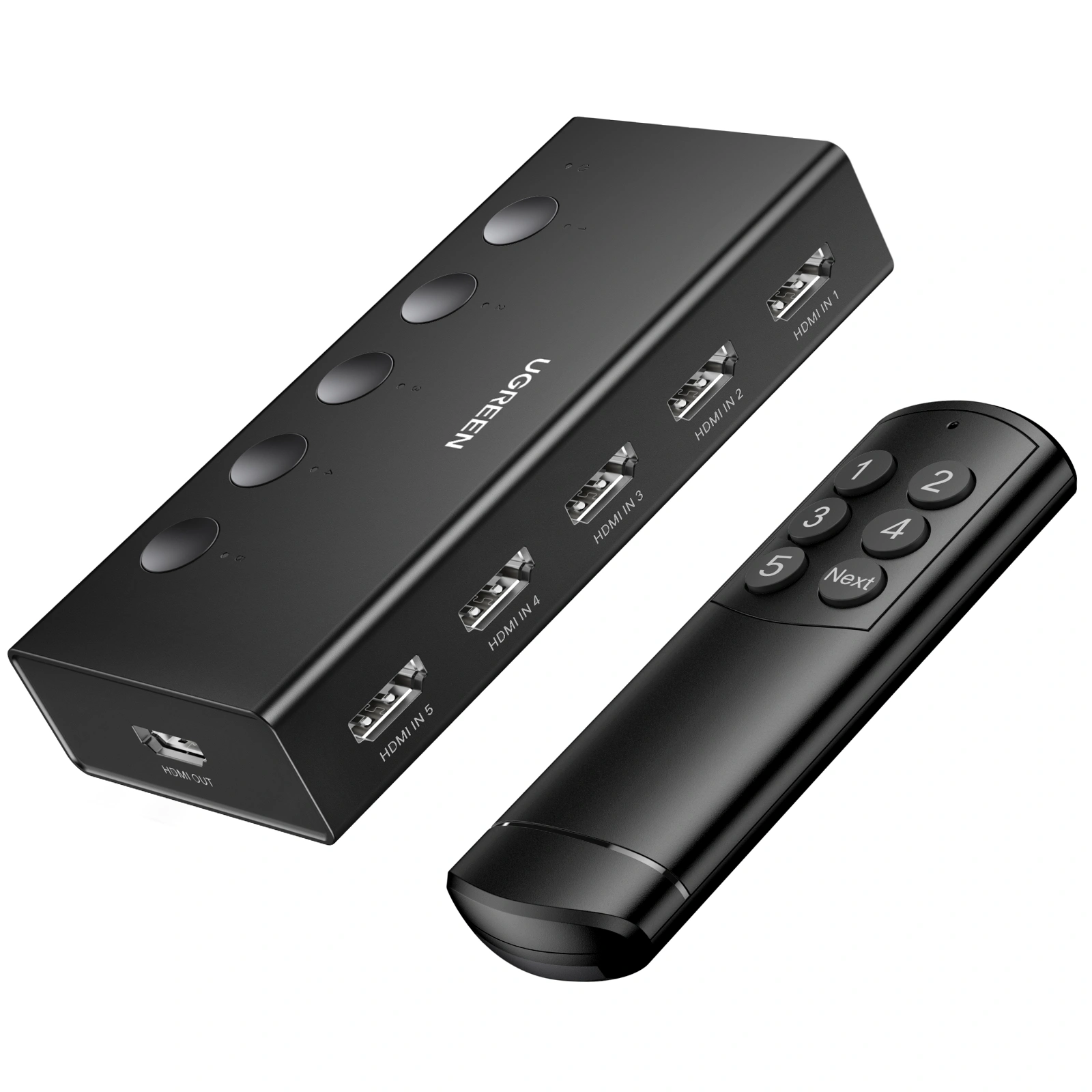

UGREEN HDMI Switch 5-In 1-Out HDMI 4K 60Hz Switch With Remote – CM568 – 90512

The UGREEN CM568 HDMI Switch is a high-performance 5-in-1-out HDMI switcher designed for seamless switching between multiple HDMI devices. Supporting HDMI 2.0, 4K@60Hz resolution, HDR, and HDCP 2.2, this switch ensures crystal-clear visuals and immersive audio. With infrared remote control and automatic switching, it offers convenience and efficiency for home theaters, gaming setups, and professional AV environments.

Key Features

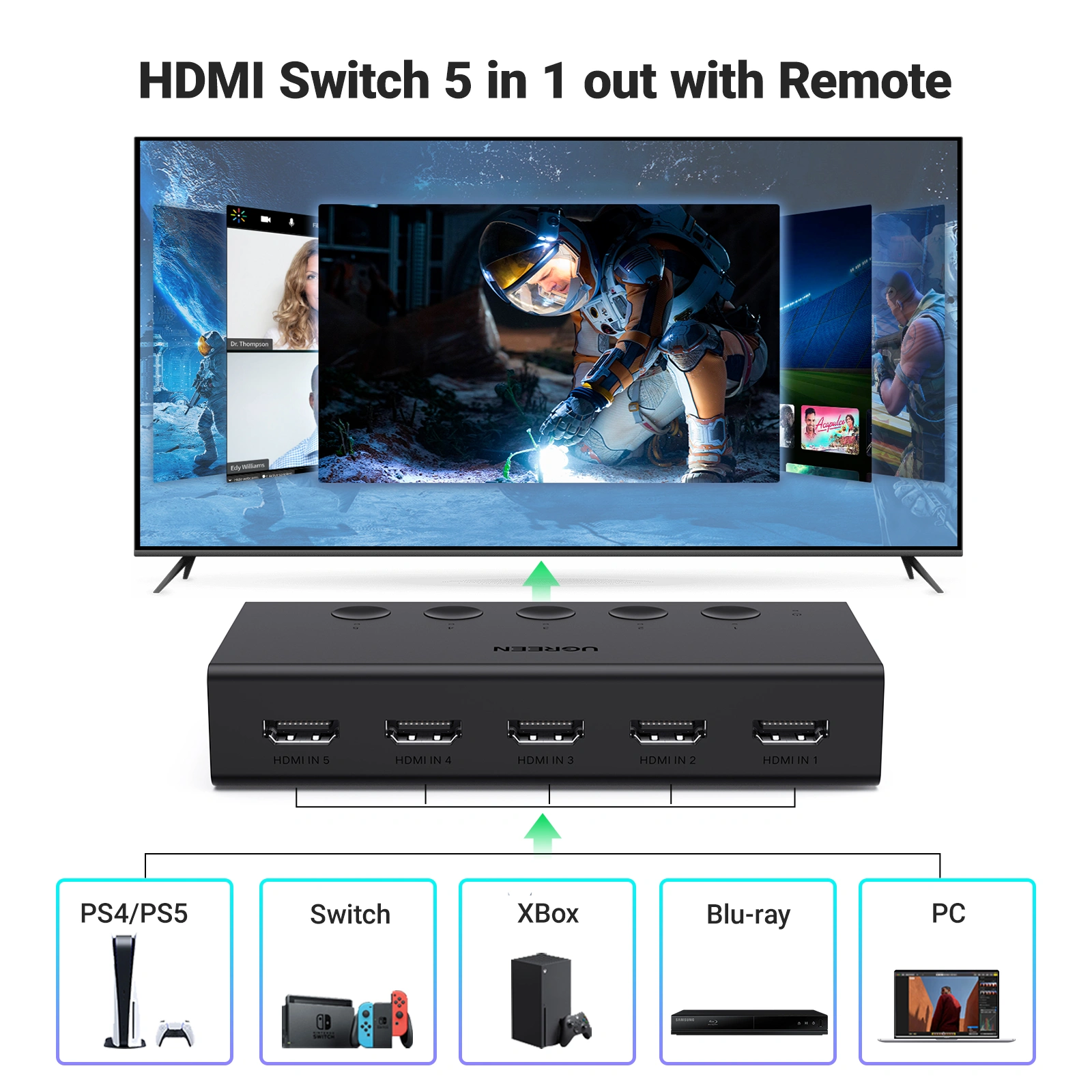

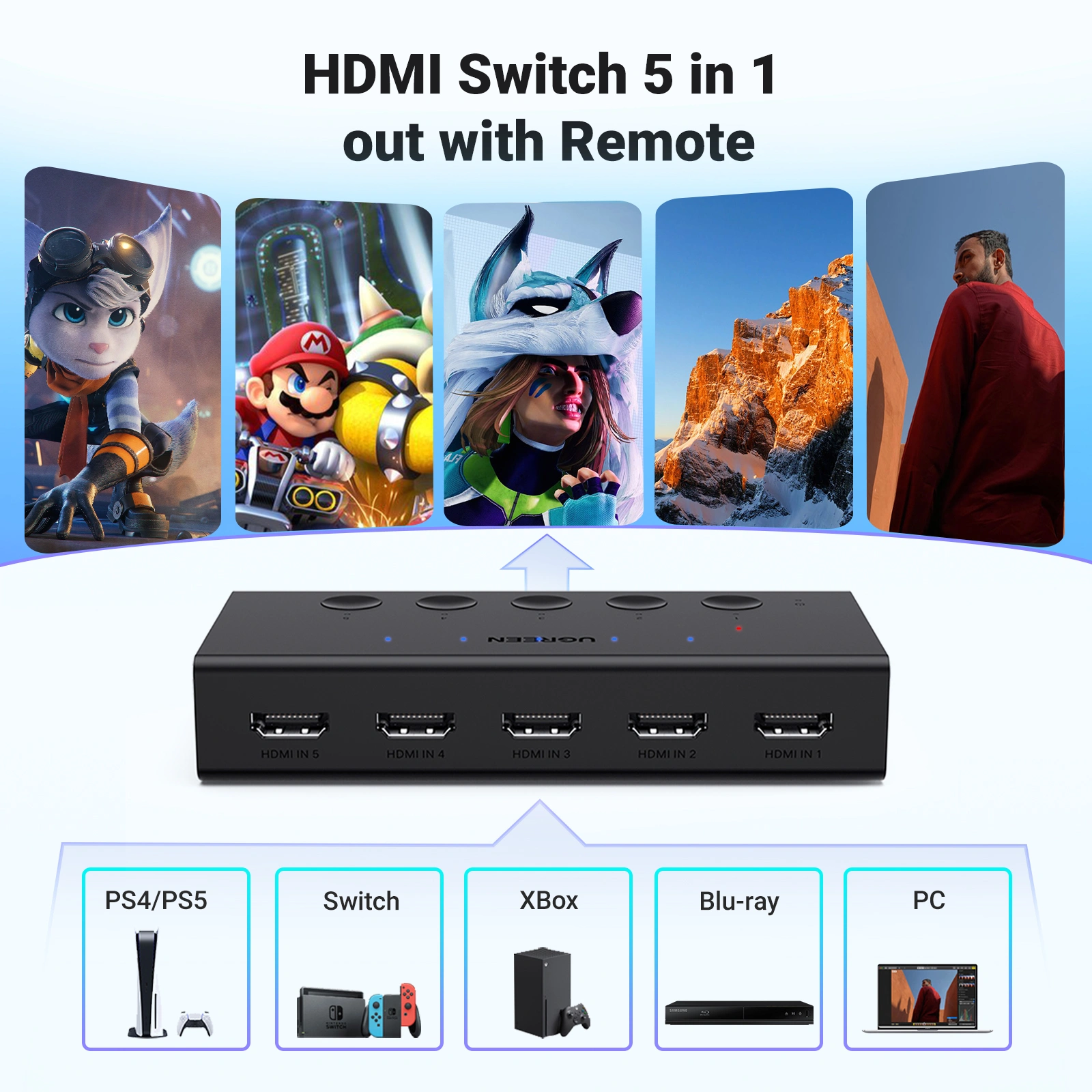

• 5 HDMI Inputs, 1 HDMI Output

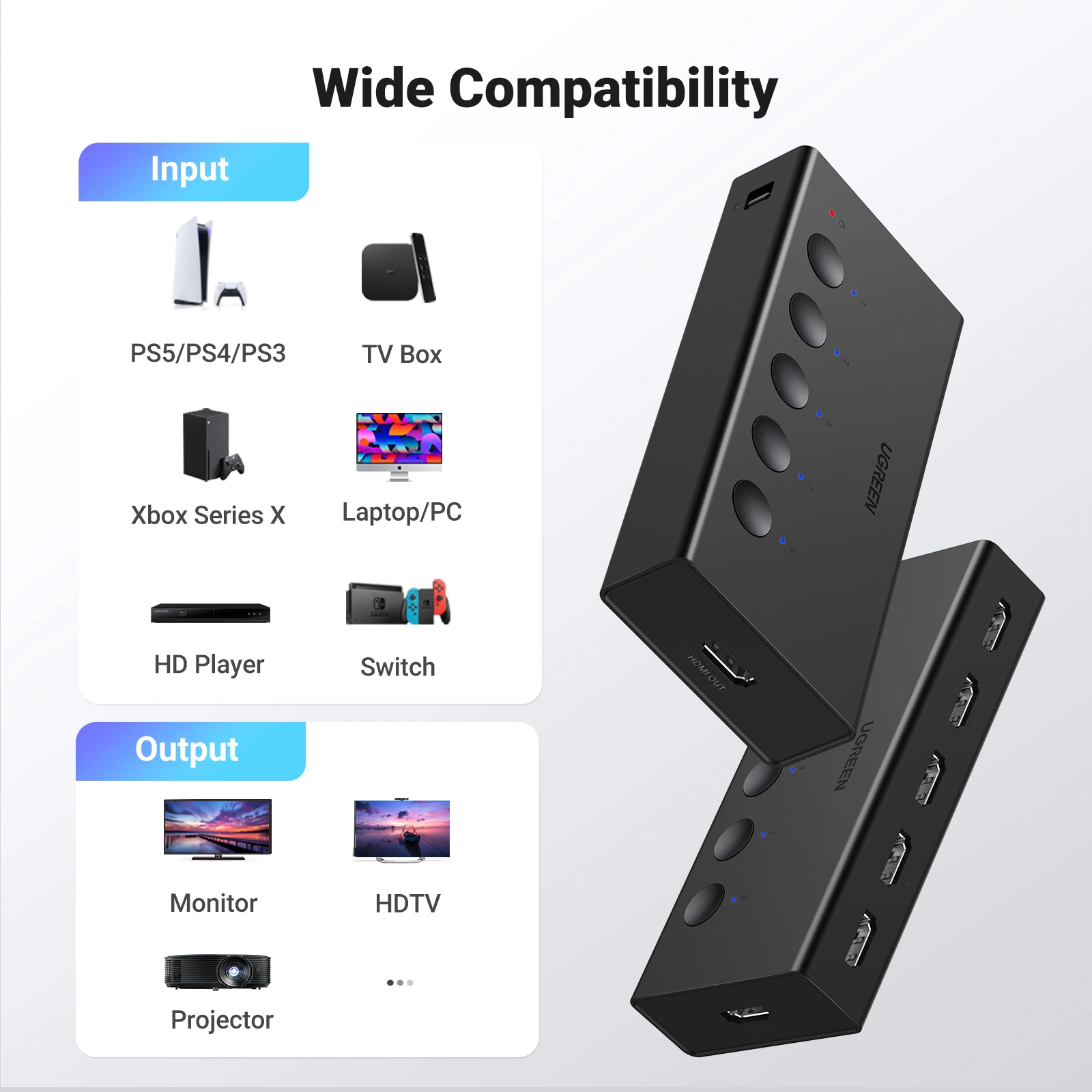

  • Connect up to five devices (gaming consoles, Blu-ray players, streaming devices, etc.).

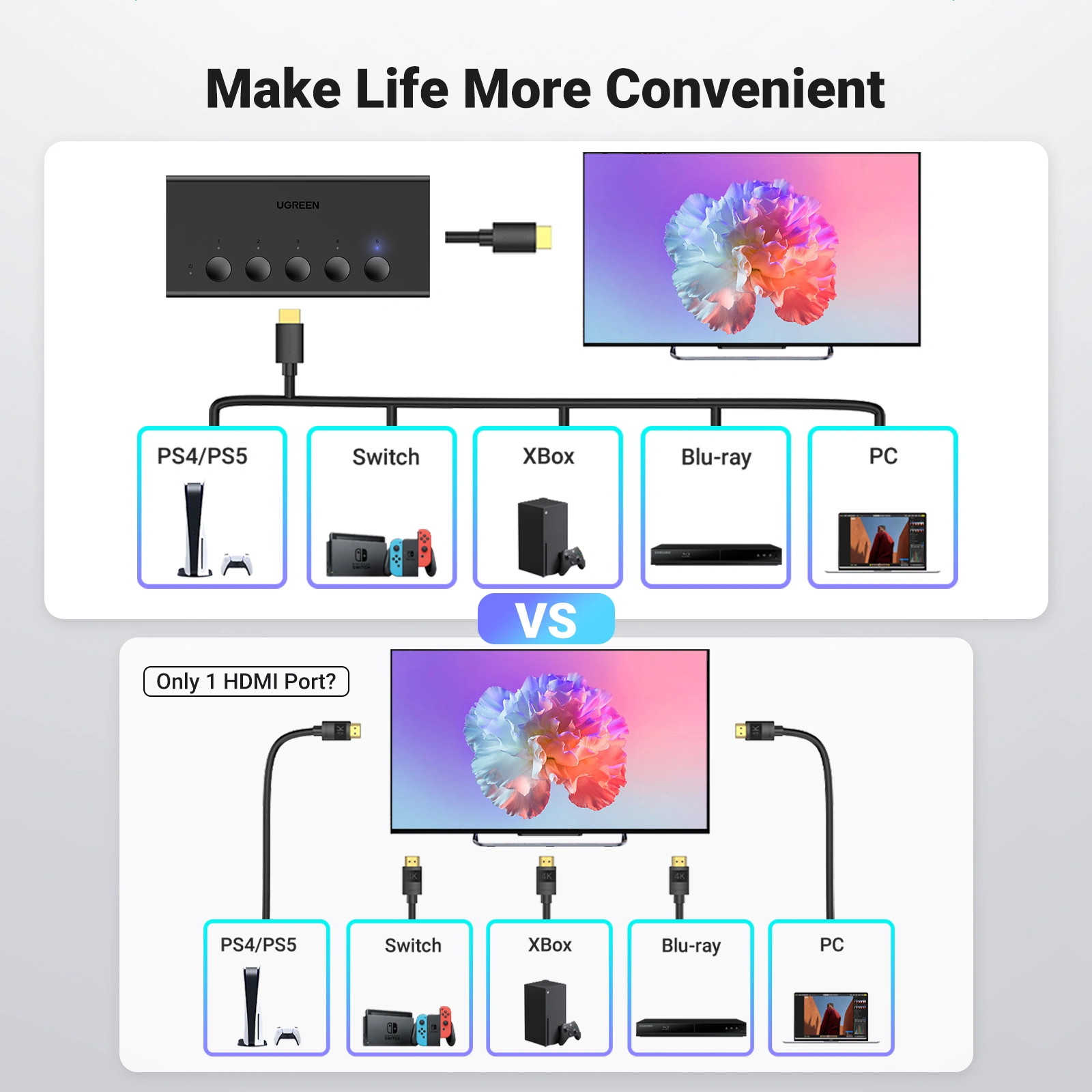

  • Eliminates the need for constantly swapping cables.
• 4K Ultra HD @ 60Hz & HDR Support
  • Delivers ultra-clear, vibrant visuals with 4K (3840×2160) resolution at 60Hz.
  • Fully compatible with 1080P@60Hz and 3D video formats.
• HDMI 2.0, HDCP 2.2, and EDID Support
  • Ensures compatibility with the latest HDMI devices and protects digital content.
• Advanced Audio Support
  • Compatible with DTS, DSD, Dolby AC3, and 5.1/7.1 surround sound.
  • Supports audio sampling rates up to 192KHz at 24-bit depth for a high-quality experience.
• Reliable Long-Distance Transmission
  • Supports 4K@60Hz within 3M using 30 AWG HDMI cables (both input & output).
  • Supports 4K@30Hz within 15M using 26 AWG HDMI cables.
  • Supports 1080P@60Hz within 20M using 24 AWG HDMI cables.
• Infrared Remote Control for Easy Switching
  • Switch between HDMI sources effortlessly using the included IR remote.
  • AA alkaline battery required (not included).
• Plug & Play with USB-C Power Supply
  • Power input: USB-C 5V/1A for stable operation.
  • Comes with a 1M USB-A to USB-C cable for power.
• Compact & Durable Design
  • ABS casing provides heat resistance and durability.
  • Lightweight and compact, perfect for entertainment centers.

Specifications

• Model: UGREEN CM568
• Input Ports: 5× HDMI
• Output Port: 1× HDMI
• HDMI Version: 2.0
• Resolution Support: Up to 4K@60Hz / 1080P@60Hz
• Video Compatibility: 3D, HDCP 2.2, HDR, EDID
• Audio Support: DTS, DSD, Dolby AC3, 5.1/7.1 channel
• Audio Sampling Rate: Up to 192KHz, 24-bit
• Remote Control: Infrared remote (Battery not included)
• Power Supply: USB-C 5V/1A (A to C power cable included)
• Material: ABS Plastic

Package Includes

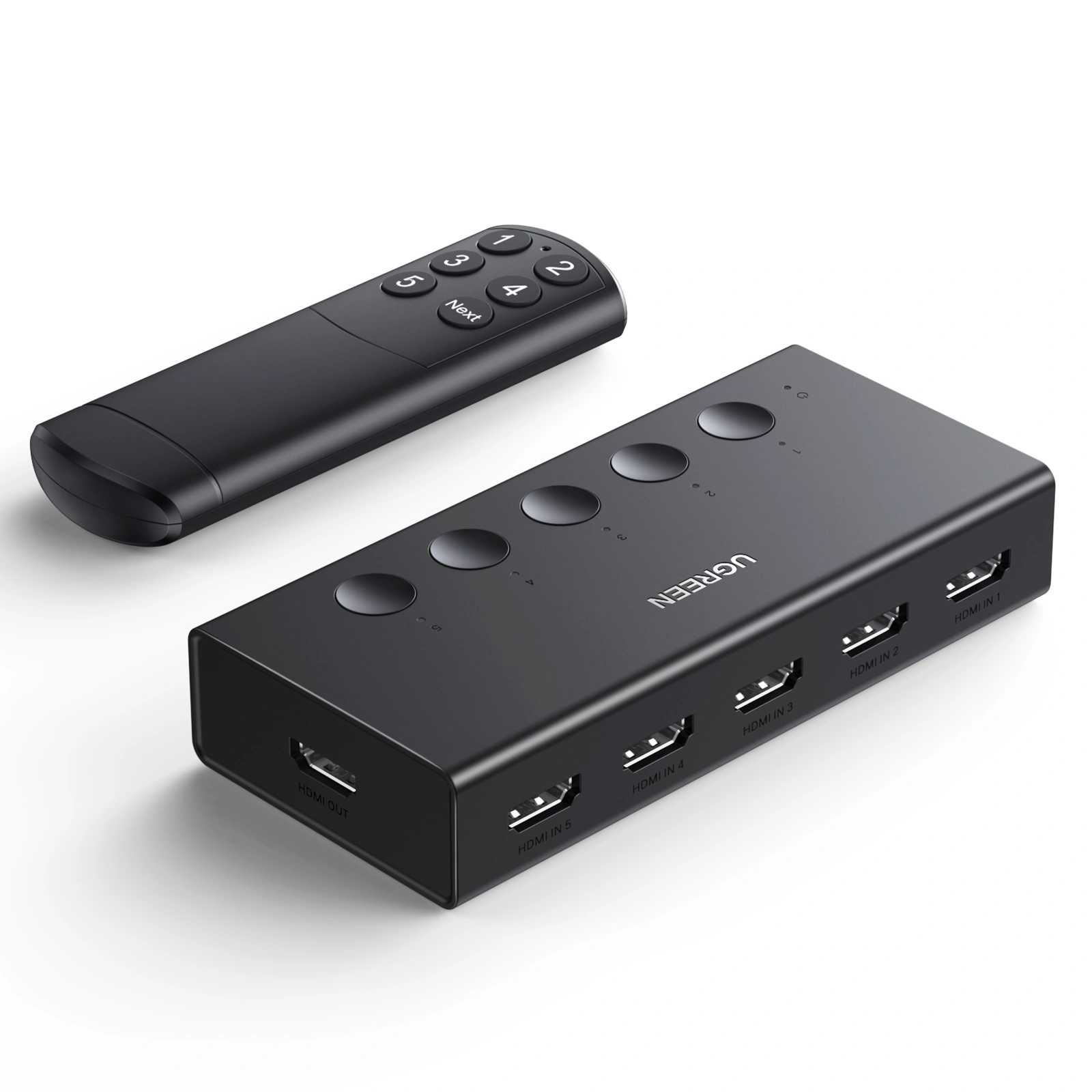

• 1 × UGREEN HDMI Switch CM568
• 1 × Infrared Remote Control
• 1 × USB-A to USB-C Power Cable (1M)
• 1 × User Manual

The UGREEN CM568 HDMI Switch is the ultimate solution for managing multiple HDMI sources with ease. With 4K@60Hz resolution, HDR support, immersive audio, and remote-controlled switching, it’s perfect for home theaters, gaming, and office setups.
