UGREEN HDMI 8K 60Hz KVM Switch 2 In 1 Out With 4 USB Devices – CM692 – 25961 – 18 Months Warranty

The UGREEN HDMI 8K 60Hz KVM Switch is a high-performance solution designed to help you control two computers with a single monitor and USB devices. Perfect for office, studio, or multi-device setups, this KVM switch centralizes control, reduces clutter, and maximizes productivity. With HDMI 2.1 support up to 8K@60Hz, four USB 3.0 ports, and dual switching options, it’s built for speed, convenience, and compatibility.

Key Features

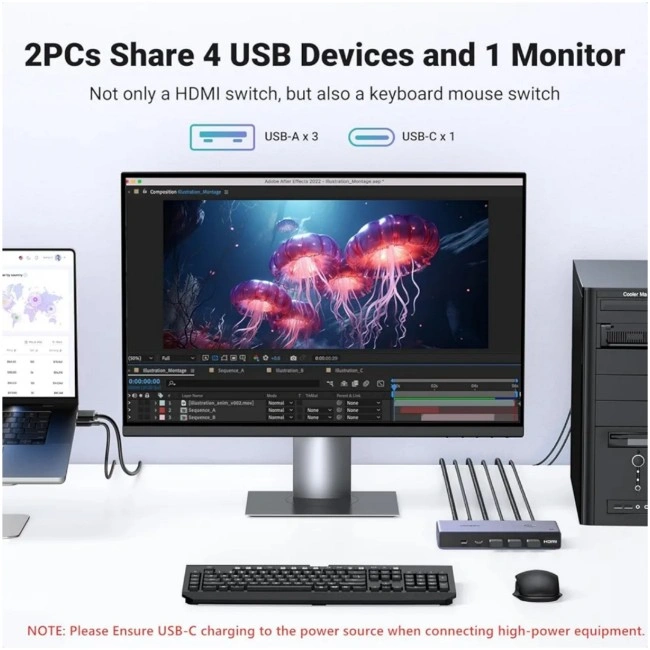

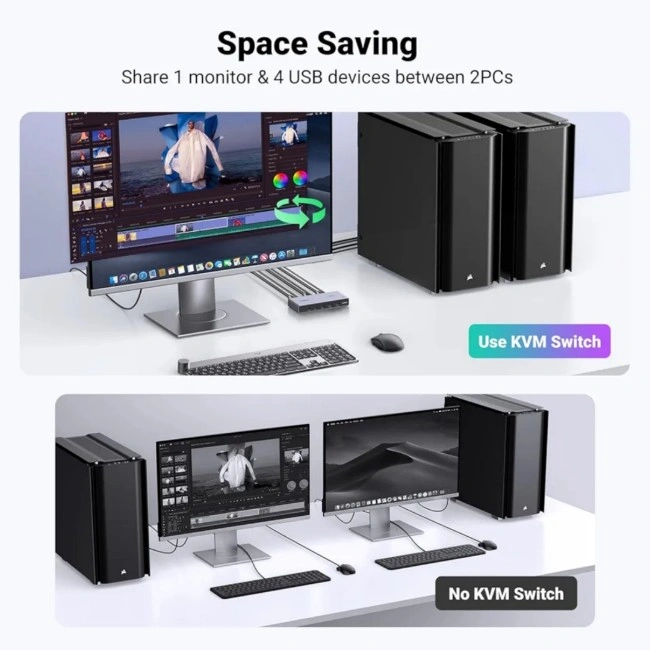

• 2 Computers, 1 Monitor Control: Share one monitor, keyboard, mouse, and four USB devices such as printers, hard drives, and flash drives between two computers. Keeps your workspace tidy and organized.

• UHD 8K Resolution: Supports resolutions up to 8K@60Hz, backward compatible with 4K@60Hz, 4K@30Hz, 2560×1440@120Hz, and 1080p@240Hz. Fully compatible with HDMI 2.0/1.4 and HDCP 2.3/1.4. (For 8K@60Hz, HDMI cables must be within 6.5 feet, and devices must support 8K.)

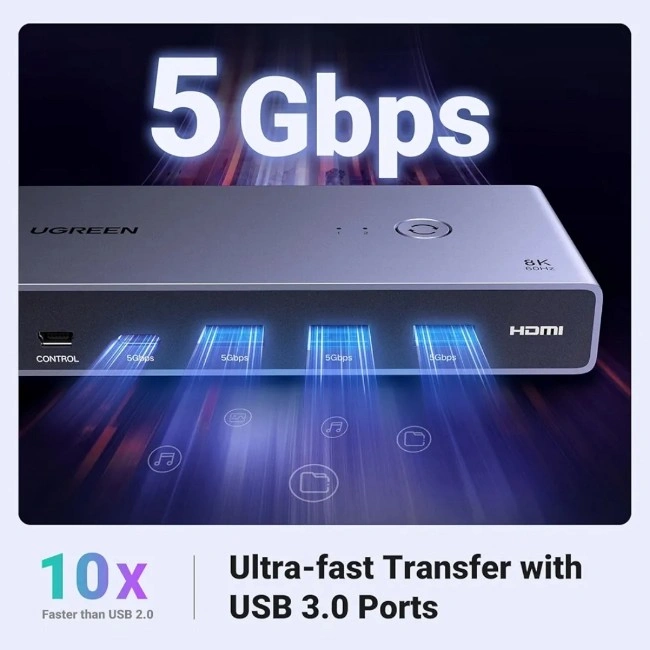

• High-Speed USB 3.0 Ports: Equipped with 3 USB-A ports and 1 USB-C port for sharing USB 2.0/3.0 devices. USB 3.0 delivers up to 5Gbps transfer speeds for fast file sharing.

• Dual Switching Methods: Switch between computers using the one-button switch or the desktop controller for maximum flexibility. (Hotkey switching not supported.)

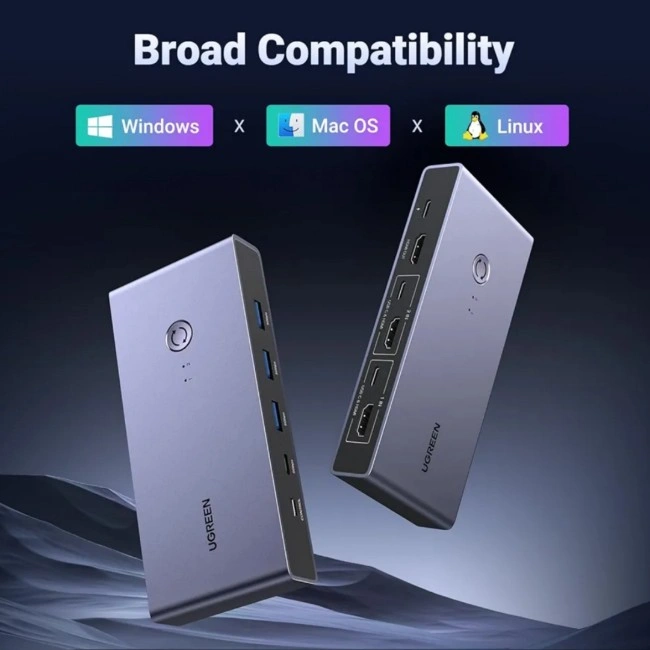

• Driver-Free Plug & Play: Compatible with Windows, macOS, and Linux. Works seamlessly with HDMI sources like PS5/4, Xbox, TV Box, laptops, Nintendo Switch, monitors, and more.

• Supports High-Fidelity Audio & Video: Handles LPCM/DTS/DSD audio and 2.0/2.1/5.1/7.1 channels with 24-bit/192kHz sampling. Supports 3D effects, HDR10, HDR10+, and VRR for superior viewing experience.

• Safe and Reliable: Powered via USB-C 5V 3A for stable performance. Supports RGB/YCbCr color formats for optimal image quality.

Specifications

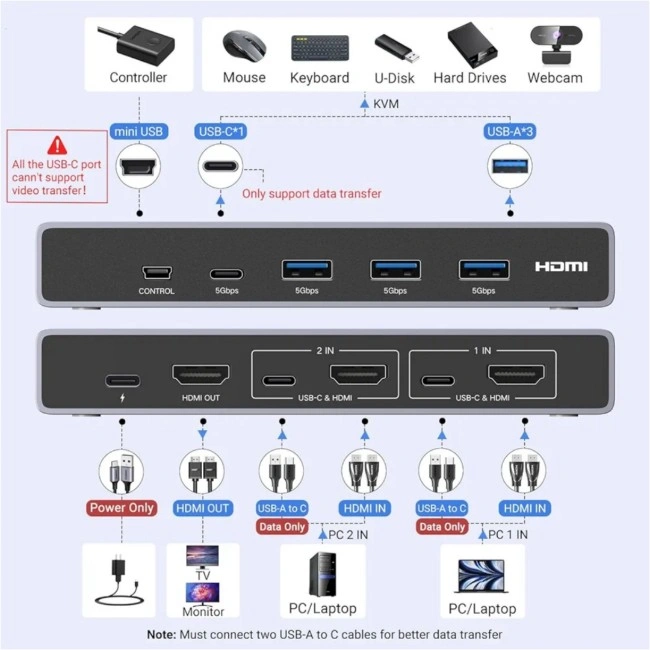

• Input Ports: 2× HDMI & USB-C, 1× Mini USB

• Output Ports: 1× HDMI, 3× USB-A, 1× USB-C

• Maximum Resolution: 8K@60Hz

• HDCP Version: HDCP 2.3 and backward compatible

• USB Standard: USB 3.0, up to 5Gbps

• Color Depth: 24-bit / 30-bit / 36-bit

• Pixel Formats: RGB/YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0

• Audio Support: LPCM/DTS/DSD, 2.0/2.1/5.1/7.1 channels

• Audio Sampling Rate: 24-bit / 192kHz Max

• Switching Modes: Button / Desktop Controller

• Power Input: USB-C 5.0V 3.0A Max

• Compatible Systems: Windows / macOS / Linux

• Dimensions: L142 × W63 × H21 mm (L5.6 × W2.5 × H0.8 in)

Package Includes

• 1× KVM Switch

• 2× USB A to C Cables

• 2× HDMI Cables

• 1× Desktop Controller

• 1× User Guide

Important Notes:

1. USB-C power cable or adapter not included.

2. Ensure input and output device resolutions match for optimal performance.

3. HDMI cables must support 8K resolution for full UHD output.

4. Hotkey switching and EDID emulation are not supported.

5. Not compatible with docking stations.
